Heavy Mount M22

back

Multipurpose mount that allows several weapons to be integrated on the same support.

M2 HEAVY MACHINE GUN / LAG-40 SB M1 (LAG) Grenade launcher

CHARACTERISTICS

G3 Type taper interface in accordance with AEP-4796.

Equipped with a damping system for recoil reduction of the M2 machine gun thus improving its firing capacity.

Transport locking system at 0°.

Mobility of the system:

  • Elevation: +40º
  • Depression: -20º
  • This movement can be locked in any position by means of the incorporated friction brake mechanism.

Material: S700MC, high elastic limit steel.
Stainless Steel optional. Consult us.

Lighter, better mechanical properties and greater resistance to wear.

Single ammunition box support system for:

  • 40 x 53mm / 32 cartridges (PA120 box)
  • 12,7 x 99mm / 100 cartridges (M2A1 box)

Painted in black with high corrosion-resistant powder paint (other colour options).

It is made up of

  • M22 Cradle
  • Multipurpose support for ammunition boxes AMP and LAG.

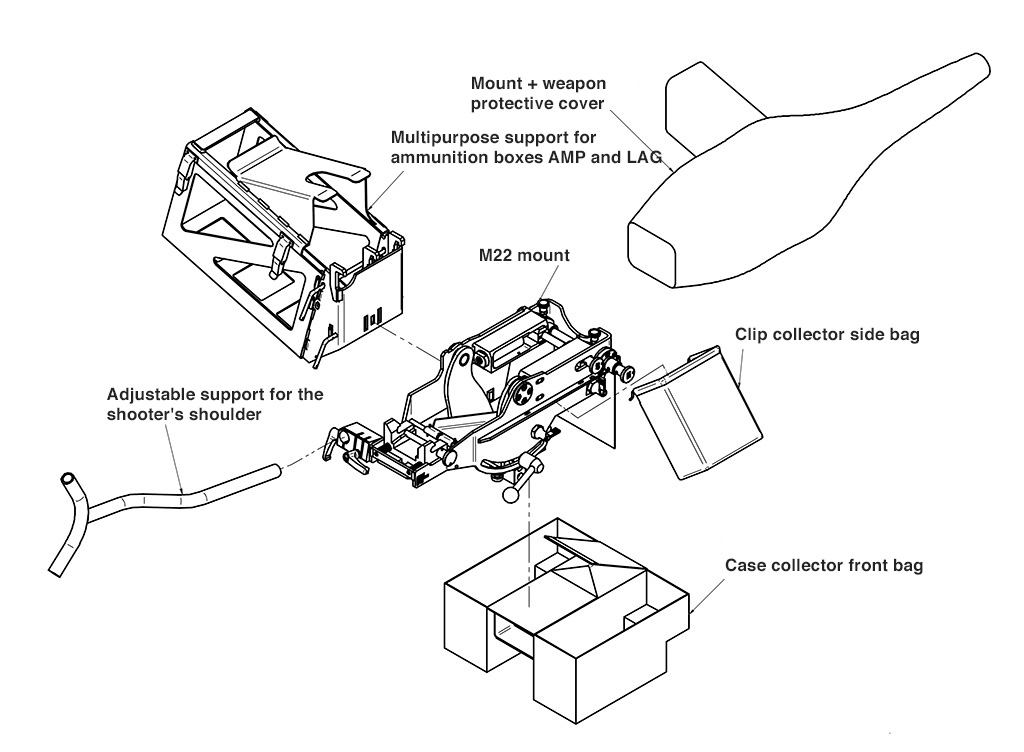

COMPONENTS & ACCESSORIES
