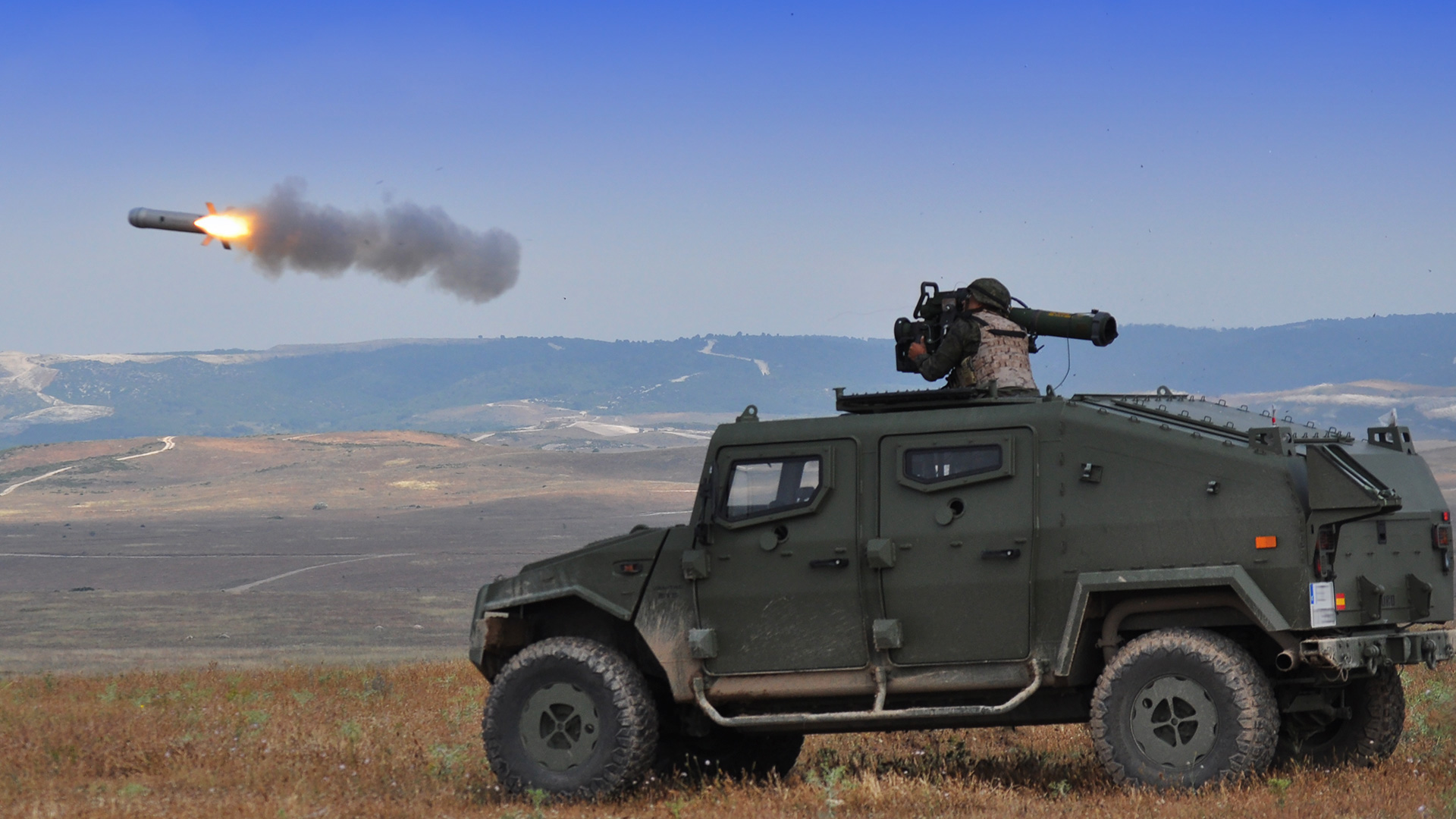

SPIKE MOUNTING ON LIGHT VEHICLE

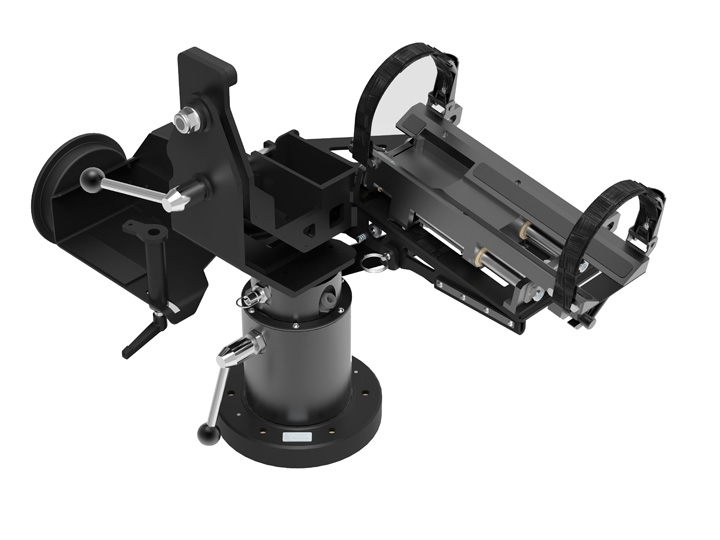

The ML-SP23 is a steerable mount that allows the Spike system’s missile launcher to be moved and operated on a vehicle without risk of damage due to vibrations transmitted by the vehicle.
The ML-SP23 mount is designed to support the control unit (CLU) and the launcher tube in a single support assembly. During vehicle movement, the missile tube is decoupled from the CLU to prevent fatigue damage to the interface. The system allows rapid coupling of the missile tube to the CLU for firing in less than 15 seconds.
CHARACTERISTICS
Operating angles:
- Horizontal rotation: 90º (-45º/+45º)
- Elevation: 15º
- Depression: 11º
Sizes:
- Length
- In transport position: 808 mm
- Minimum length: 743 mm
- Height
- Above roof: 570 mm
- Maximum roof lift: 700 mm
- Below mounting surface: 45 mm
- Width: 451 mm
Weight: 46 Kg
Painted in black with powder paint with high corrosion resistance (other colors available)
Materials:
- S700MC high-strength steel
- Stainless steel
- Aluminum
